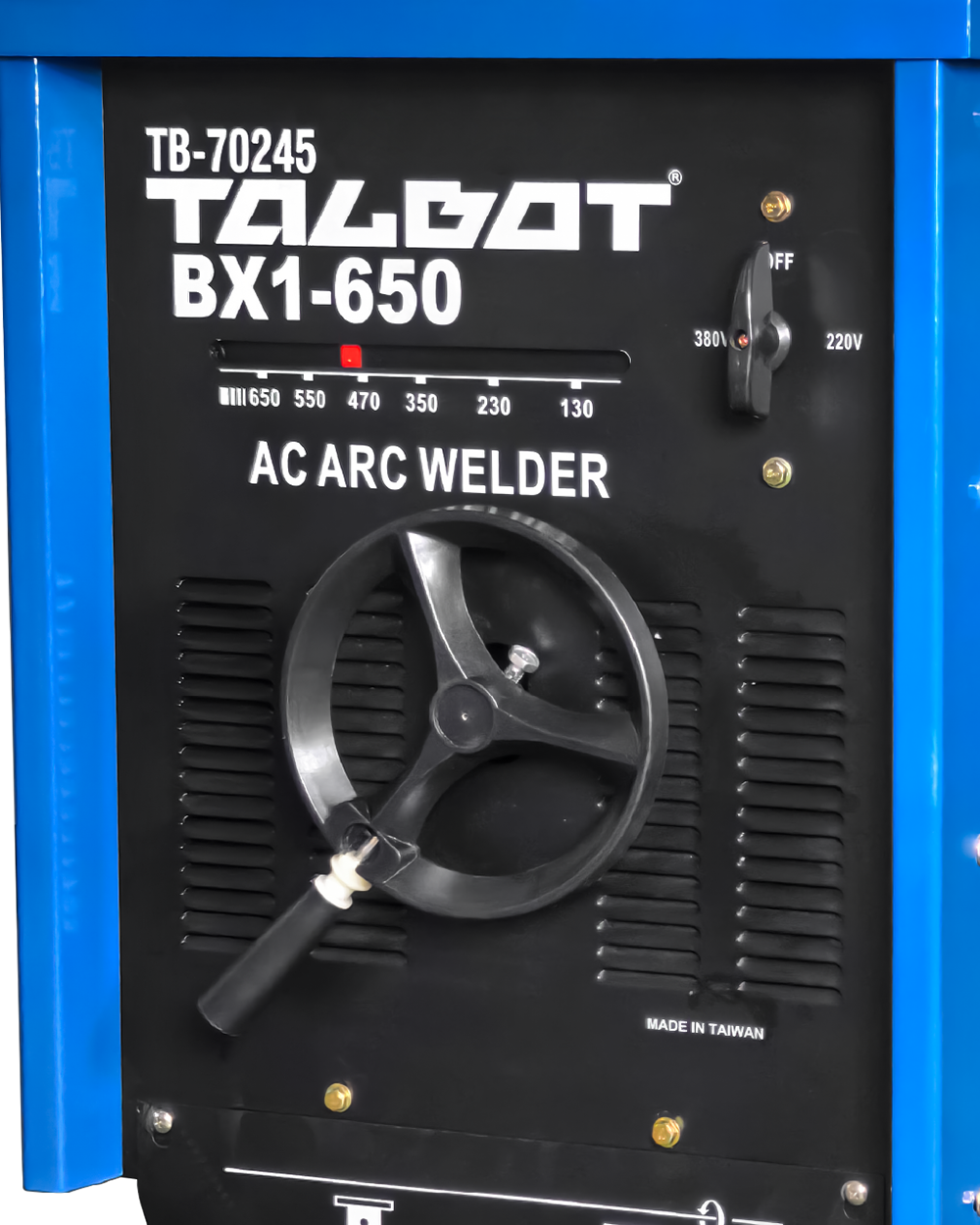

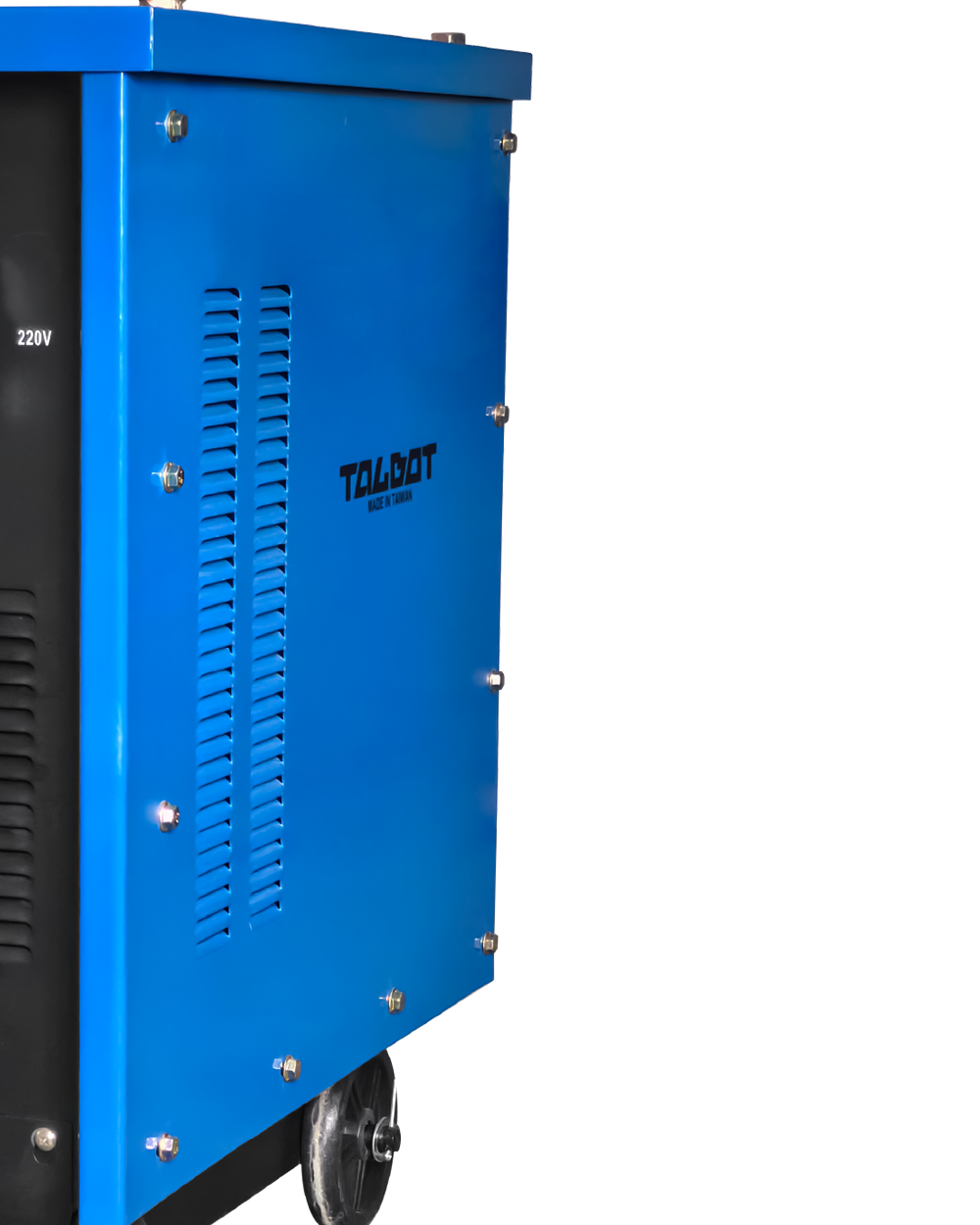

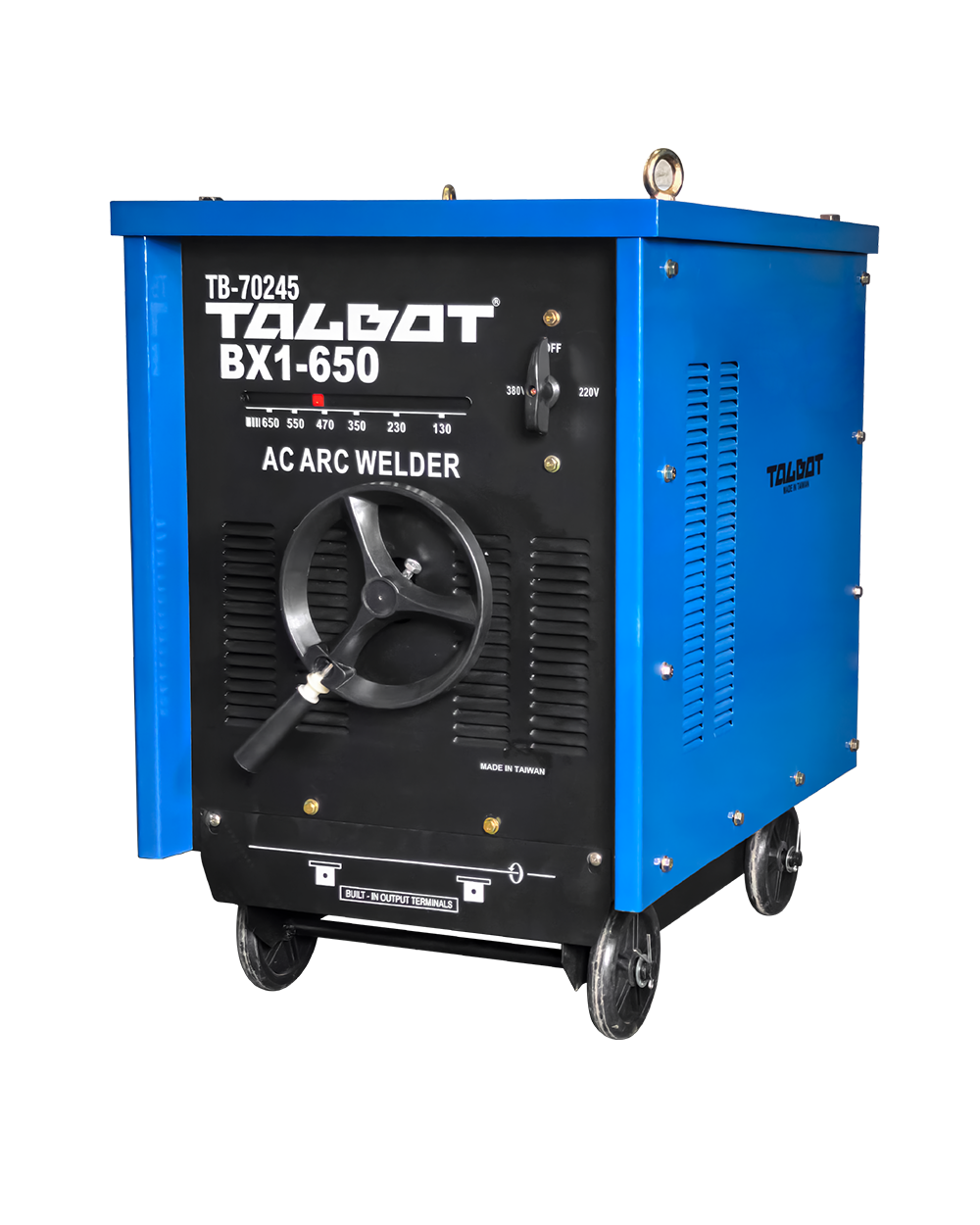

AC ARC WELDER BX1-650

Welding Cutting & Soldering Equipments

AC ARC WELDER BX1-650

Welding Cutting & Soldering Equipments

Enquire Now

Enter your email address to be notified about product.

Name

Phone

Requirements

SKU: AD1FSSE0YR
Categories: Welding Cutting & Soldering Equipments

Descriptions

The BX1-650 is a high-capacity, heavy-duty AC arc welding power source designed to meet the rigorous demands of industrial fabrication, construction sites, and repair shops. Utilizing a robust moving-core transformer design, it delivers exceptionally stable alternating current (AC) output, which effectively minimizes arc blow when welding magnetized or thick steel plates. Built with high-grade magnetic steel laminations and premium copper windings, this machine ensures optimal thermal efficiency, a prolonged duty cycle, and minimal power loss. Its stepless current adjustment mechanism allows operators to fine-tune the output precisely to match specific electrode diameters and workpiece requirements. Engineered for longevity and harsh environments, the BX1-650 features forced-air fan cooling and automatic thermal overload protection to prevent overheating during continuous, high-current operations.

Key Features

Built with heavy-duty steel casing and premium copper transformer windings.
Delivers 650A maximum output with highly stable AC arc performance.
Features a moving-core mechanism for precise, stepless current control.
Integrated heavy-duty wheels and dual lifting handles ensure easy transport.
Fully compatible with diverse industrial MMA electrodes and global standards.

Additional Information

Part No :	TB-70245
Voltage	220V/380V
Rated Frequency	50/GOHz
Current	260A/410A
Duty Cycle	85%
Power Factor	0.93
Class of Insulation	F
Degree of Protection	IP21S
Weight	88 Kg
