HYDRAULIC BODY FRAME REPAIR KIT - 10T

Hydraulic Lifting, Pulling & Material Handling Equipment

HYDRAULIC BODY FRAME REPAIR KIT - 10T

Hydraulic Lifting, Pulling & Material Handling Equipment

Enquire Now

Enter your email address to be notified about product.

Name

Phone

Requirements

SKU: AD1FSSE0YR
Categories: Hydraulic Lifting, Pulling & Material Handling Equipment

Descriptions

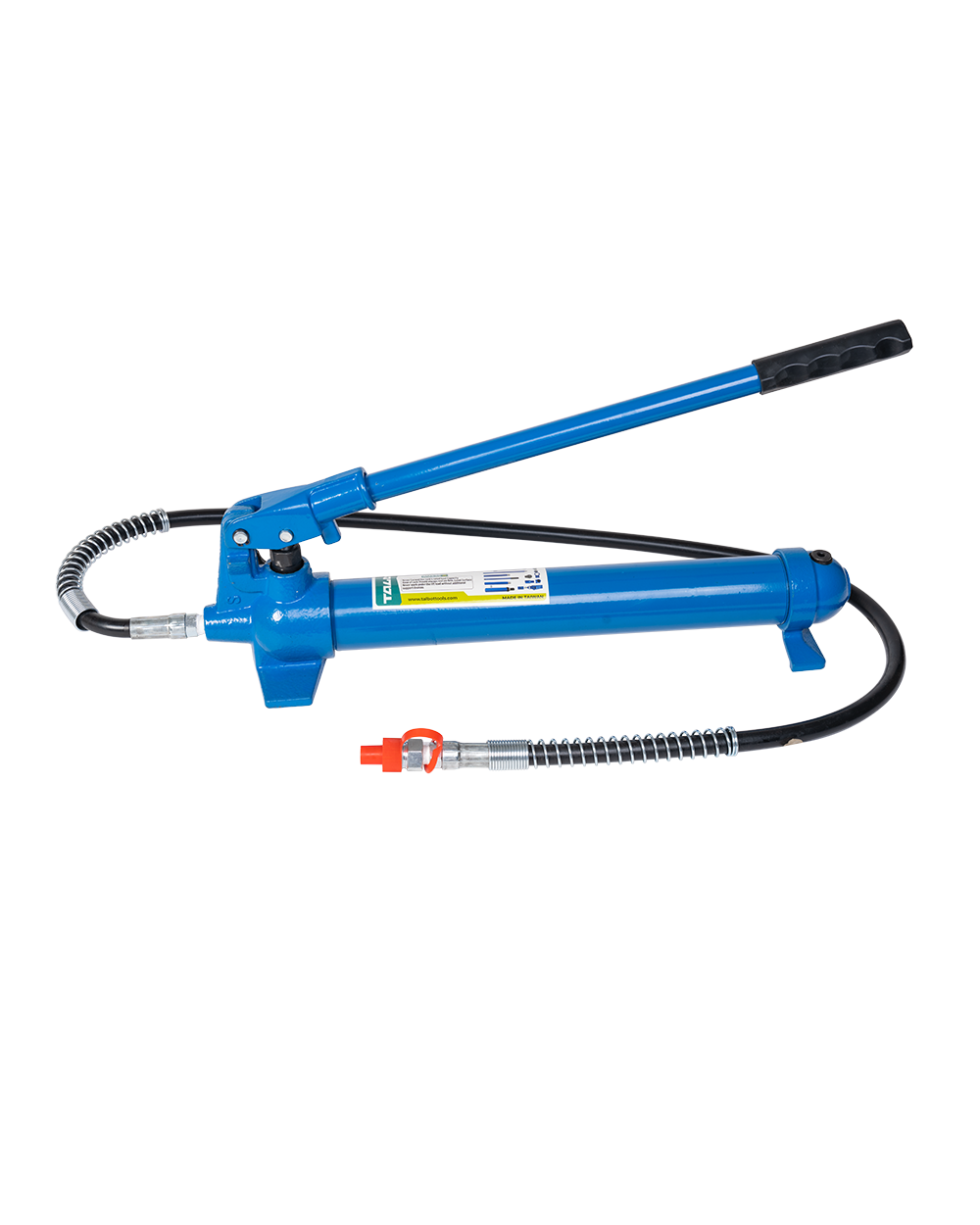

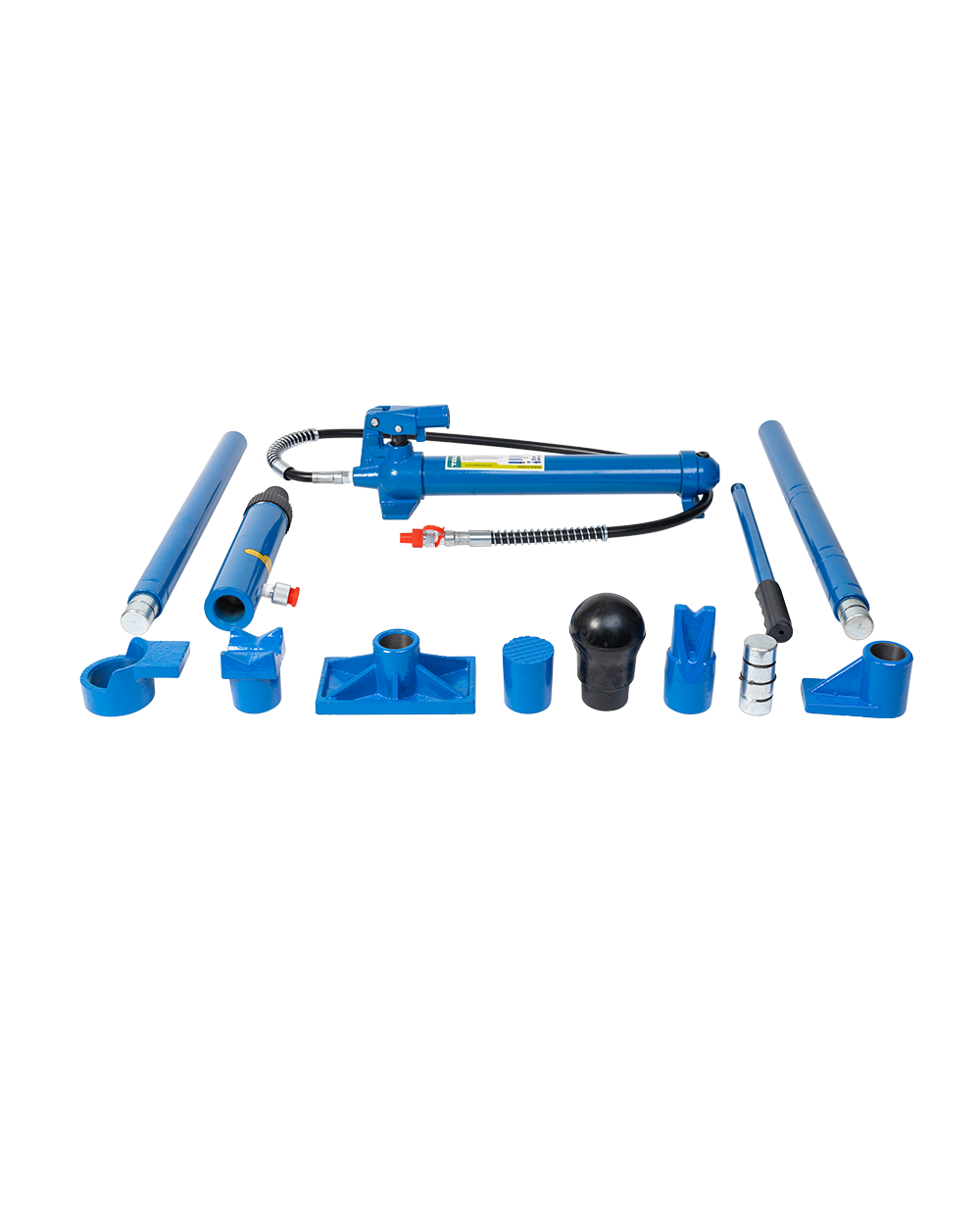

Engineered for demanding automotive repair and heavy fabrication, this 10-Ton Hydraulic Body Frame Repair Kit delivers reliable pushing, pulling, lifting, and straightening power. The system combines a high-capacity hydraulic pump, a durable hydraulic ram, and a comprehensive set of extension tubes and attachment heads designed to tackle stubborn structural deformities. Built to handle heavy collision damage, it gives technicians the leverage required to restore frame geometry and panel alignment back to factory specifications.

Key Features

• Heavy-duty alloy steel construction ensures long-lasting durability under load.
• 10-ton hydraulic ram delivers immense force for major structural alignment.
• Modular snap-lock design enables fast assembly of extension tube configurations.

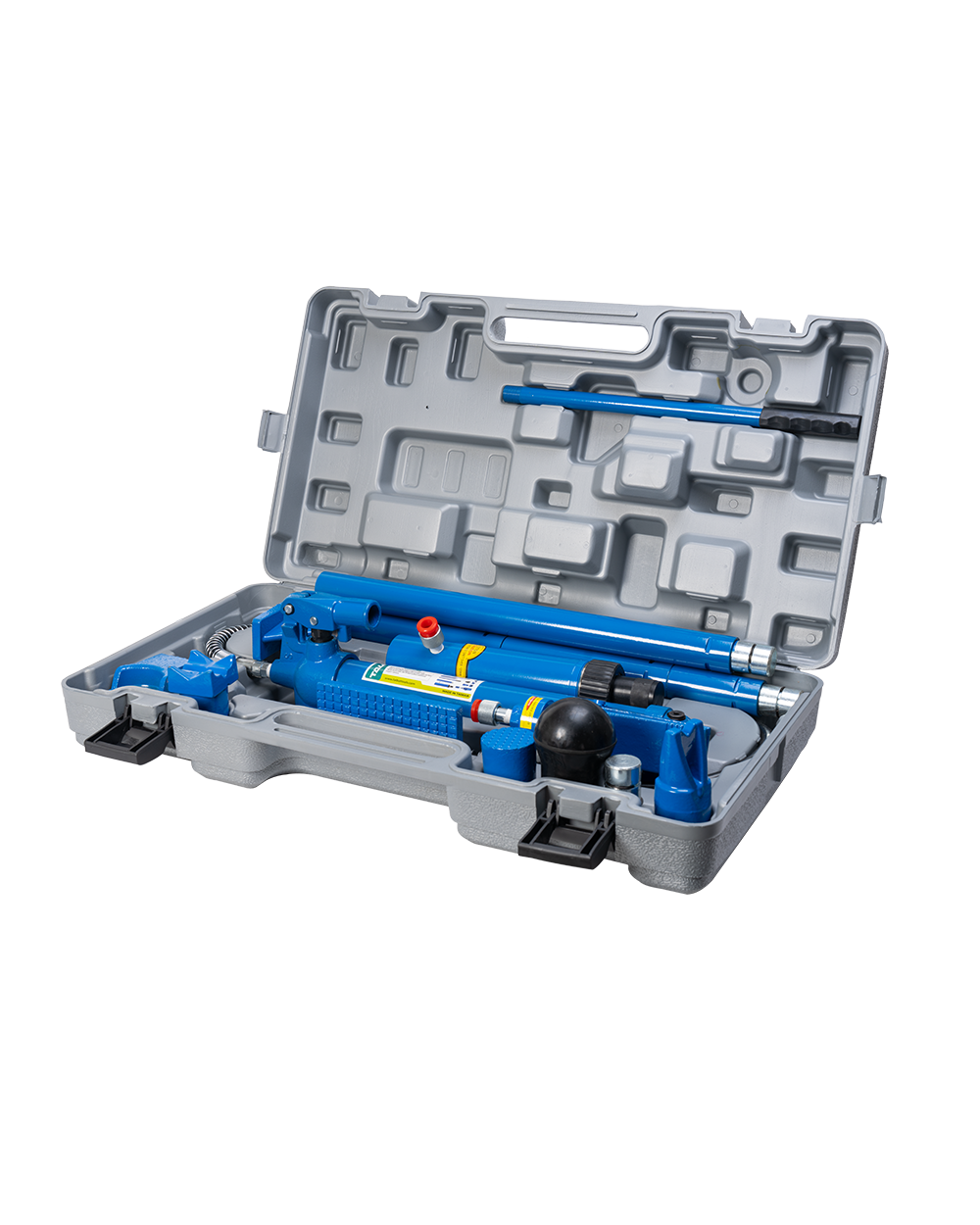

• Blow-molded wheeled case provides organized storage and effortless jobsite transport.
• Standard fitting connections ensure broad compatibility across multi-brand hydraulic attachments.

Additional Information

Part No	T B-78011
Rated C apacity	10 Ton
Ram Stroke	130mm
Max Pressure	8,900 PSI
Cylinder Stroke	130mm
Cylinder Min Length	320 mm
Cylinder Max Length	450 mm
Oil Hose Length	1.4 m
Number of Extensions	4 Spreader
Capacity	0.5 Ton
Weight	30-31 Kg
Extension Lengths	100/200/300/500 mm
Spreader Range	83mm
